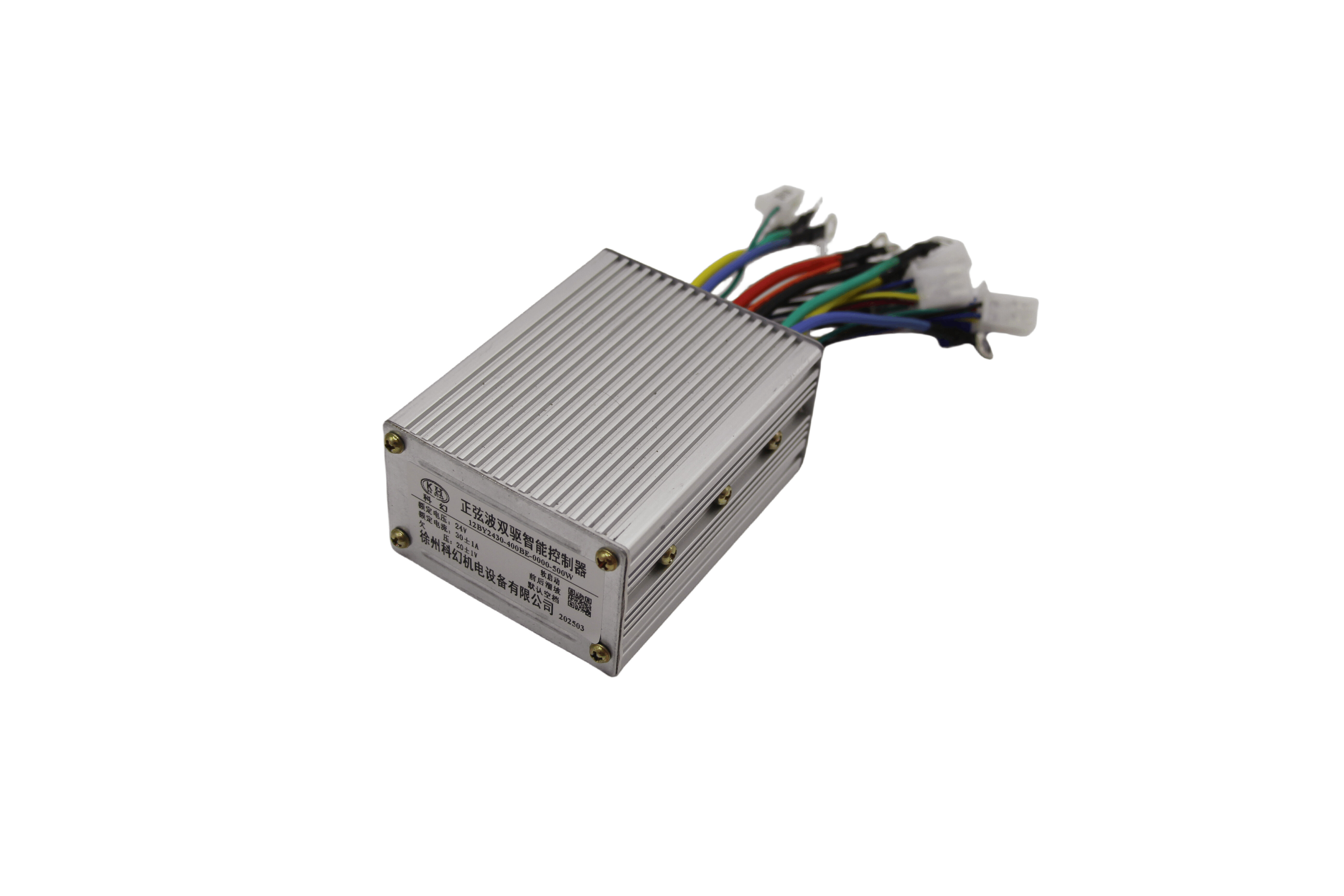

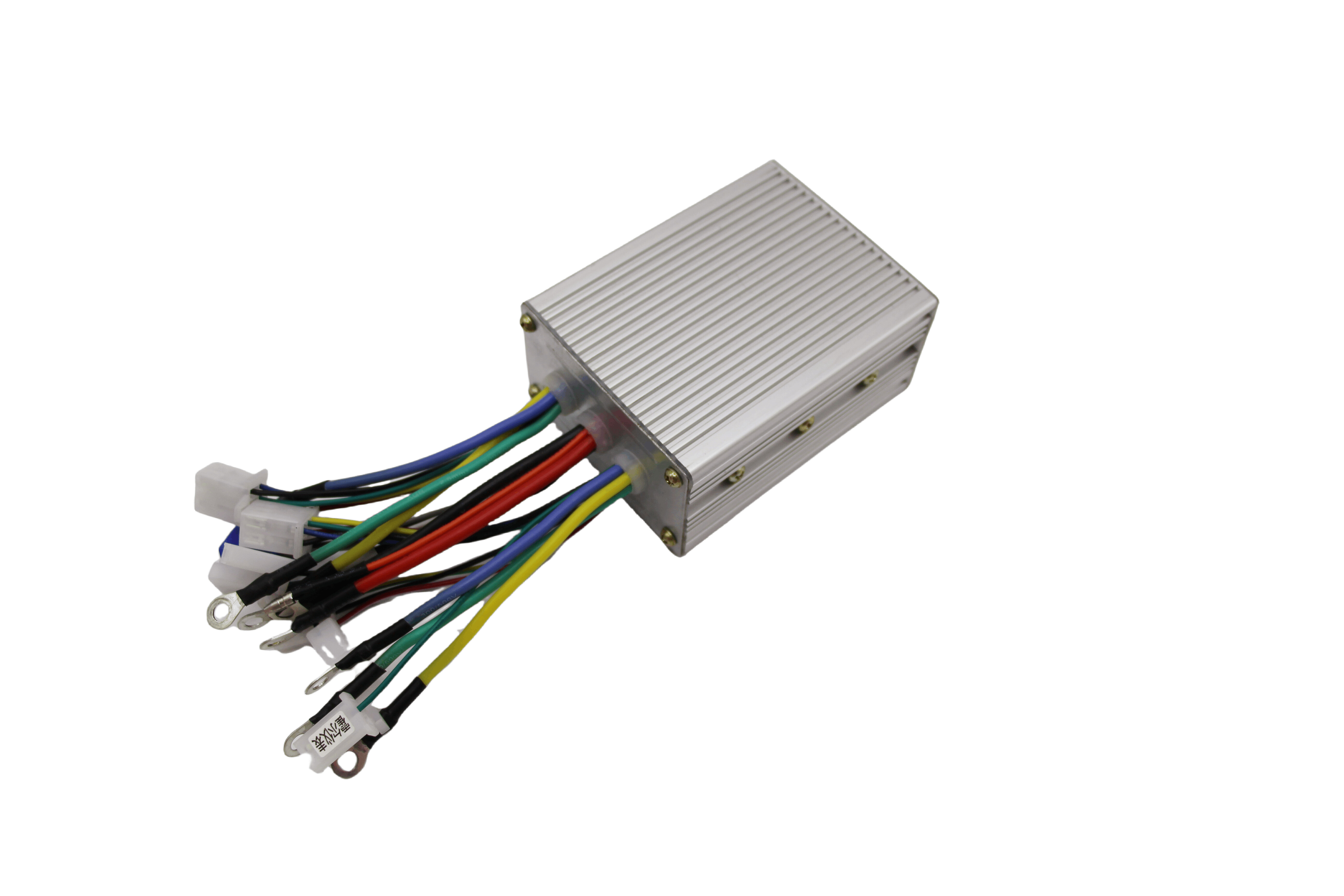

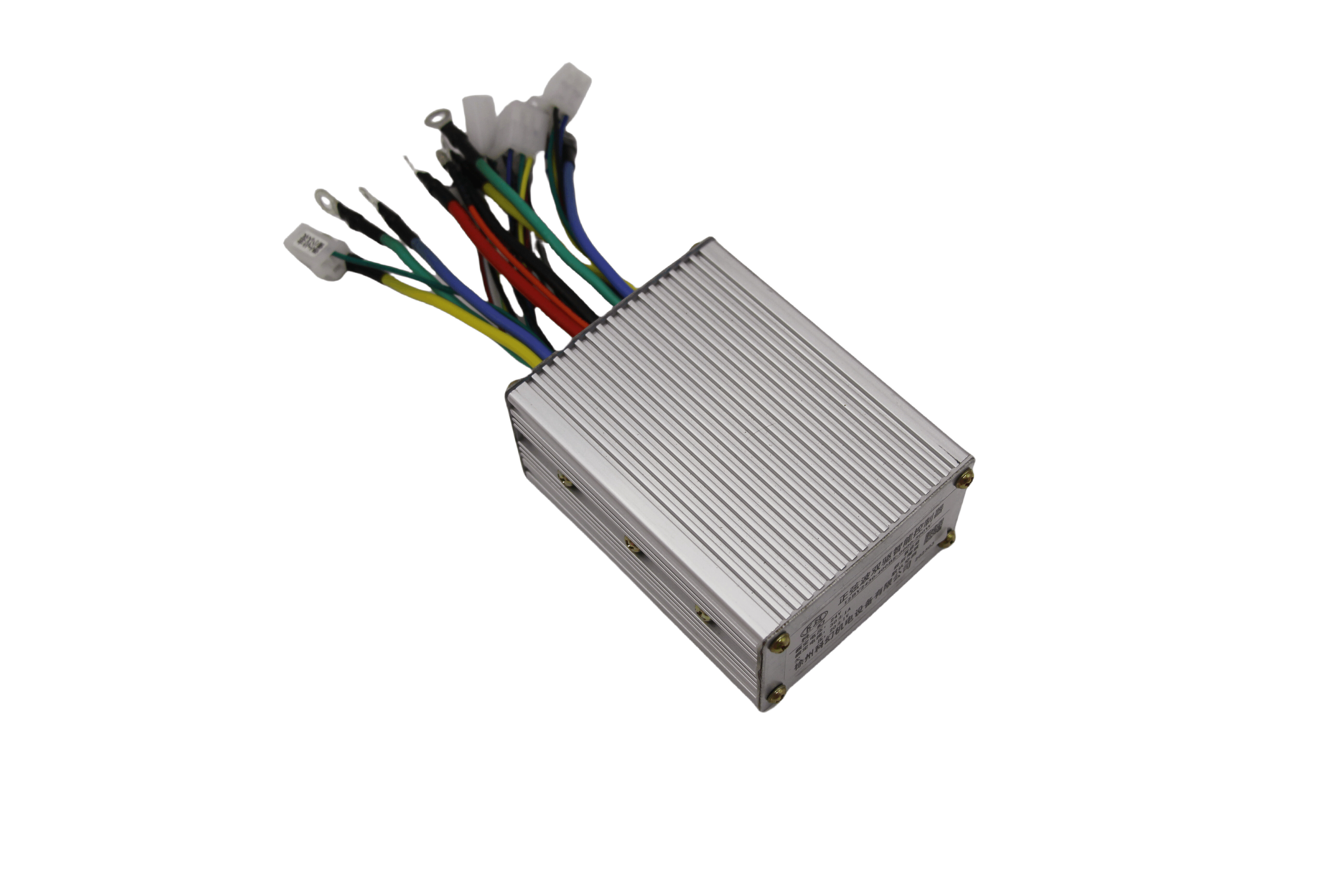

Electric Tricycle Controller frequently burns out? Load mutation (such as climbing, sudden braking) causes MOS tube overcurrent breakdown, and the maintenance cost remains high - this is a common problem in the industry. Your trouble is not only the reduction of motor life, but also the risk of joint failure of the Rear Axle system. Our 12-tube brushless motor controller breaks the game with triple hard-core design:
Intelligent fault-tolerant drive-automatically switches to Hall-free mode when the Hall is damaged, and the car can continue to drive after pushing one circle to avoid breaking down halfway25;
Multiple safety protection-E-ABS brake back pressure control + phase line short circuit protection, downhill voltage surge without breakdown, sudden short circuit 30 times without damage24;
Adaptive wide voltage-compatible with 48V/60V battery and 500-800W motor, three-speed speed regulation to match load climbing requirements, and battery life increased by 15%35.
Actual effect: The loading failure rate is reduced by 80%, the current response speed is increased by 3 times when the rear axle load fluctuates, and the battery soft undervoltage technology extends the battery life by 2 years29.
Product Features
① Military-grade heat dissipation-all-aluminum heavy-duty radiator + dynamic temperature control, the temperature rise of the stall test is 40℃ lower than the conventional one4
② Anti-theft lock machine-the car is automatically reversed and pushed back when the car is locked, and it is triggered when the car is stolen2
③ Self-learning line sequence-60°/120° motor wiring-free identification, plug and unplug to adjust the steering5
Tips
❶ Heat dissipation inspection-clear the dust accumulated on the radiator every month to avoid cotton clogging (especially cargo tricycles)9
❷ Moisture-proof and overload-proof-apply sealant to the bottom of the control box, and enable low speed gear when the load exceeds 800kg59
Choosing 12 tubes means choosing the confidence of "high load without breaking down"-let your Electric Tricycle controller become the strongest link in the power chain!
