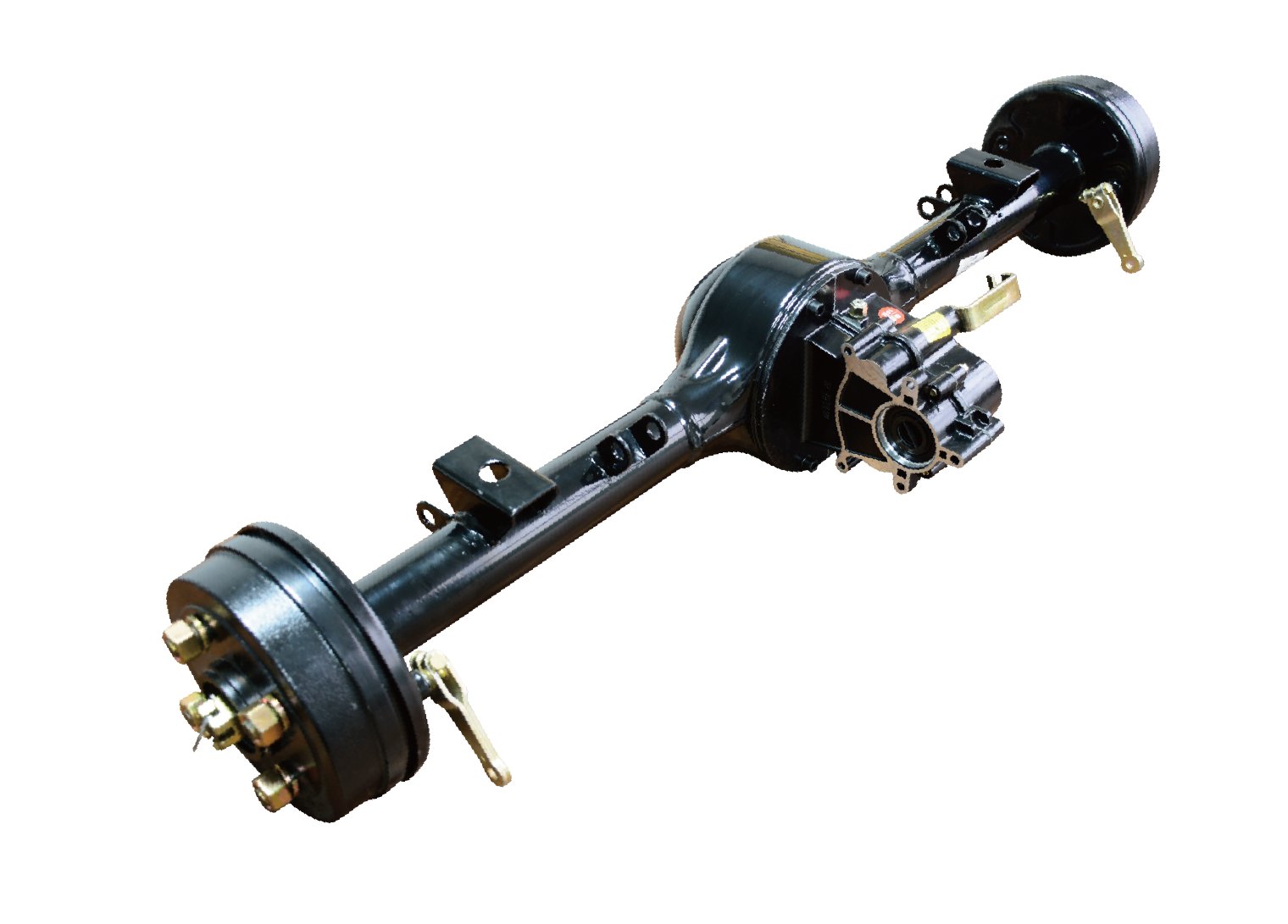

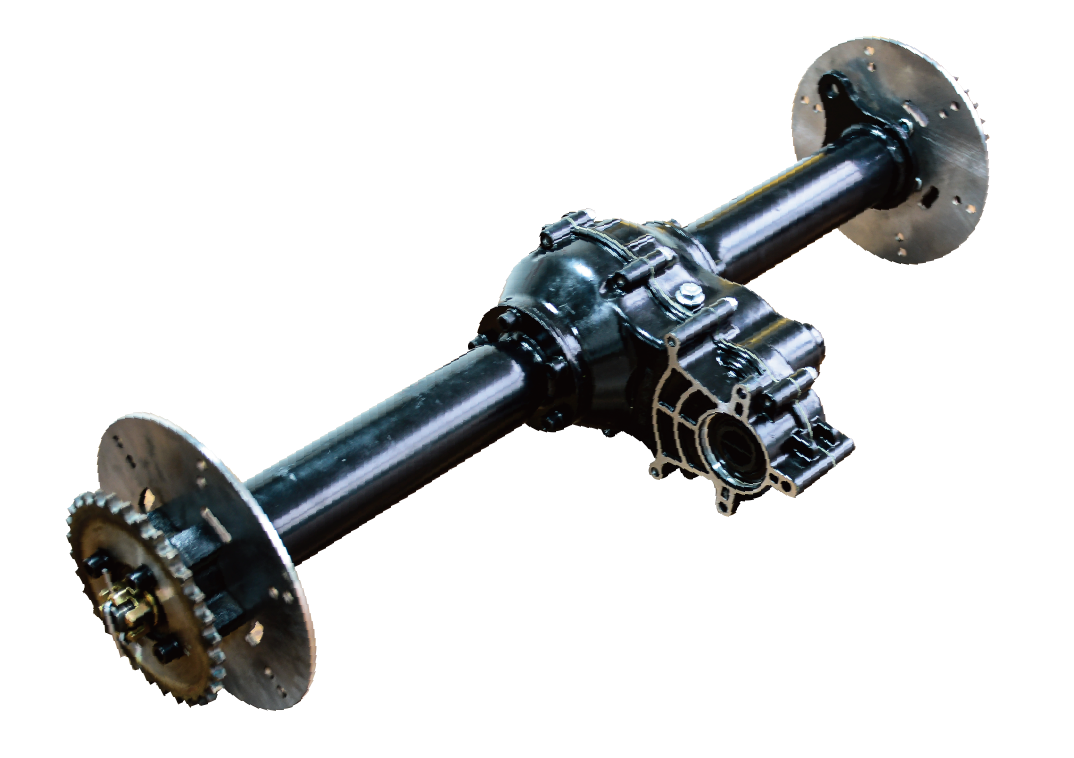

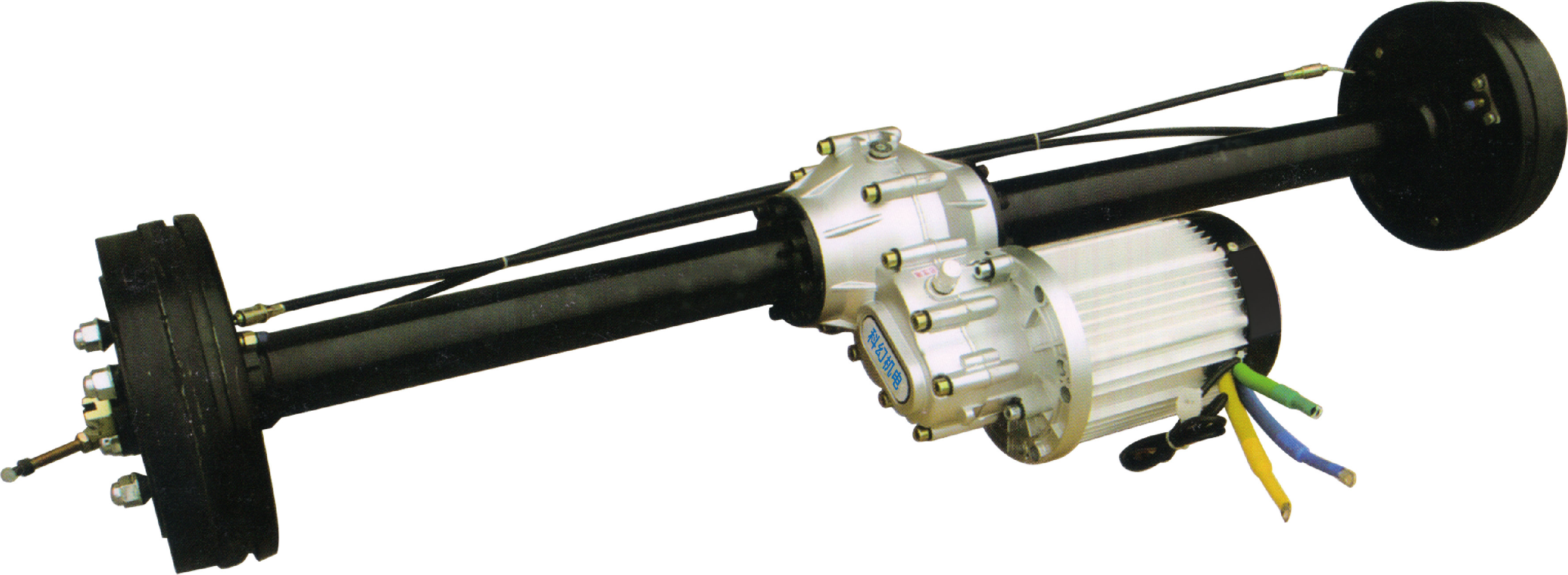

Rear axle assembly for electric tricycle

Product Description

Are there many Rear Axle failure problems?

In the use scenarios of electric tricycles, traditional rear axles often fail frequently due to design defects: low transmission efficiency between the motor and the rear axle, poor controller matching causes jamming, and even some modified rear axles of electric four-wheel vehicles have insufficient load-bearing problems. Are you always troubled by abnormal noise, oil leakage, and power attenuation of the rear axle? Our Electric Tricycle rear axle overcomes the industry pain points with professional design! The bridge housing is made of high-strength alloy material, matched with high-precision gear sets, and adapted to mainstream electric tricycle motors and controllers. It can run stably from express delivery to cargo loading scenarios. Actual measurements show that the transmission efficiency of the rear axle is increased by 30%, the noise is reduced by 40%, and it has passed the 100,000-kilometer trouble-free test, effectively solving the problems of short life and frequent maintenance of traditional rear axles.

【Product Features】

① Strong load-bearing and impact resistance: The bridge housing is made of QT450 ductile iron, with a load-bearing capacity of up to 800kg, suitable for heavy-duty transportation scenarios;

② Low-resistance and high-efficiency transmission: The combination of spiral bevel gears + high-precision bearings has a transmission efficiency of 92% and a 15% increase in cruising range;

③ Intelligent adaptation system: Compatible with 60V-120V motors and vector controllers, ready to use, reducing matching and debugging costs.

【Maintenance Tips】

1. Regular oil changes: Replace the hyperbolic gear oil every 5,000 kilometers to avoid oil deterioration at high temperatures and aggravated gear wear;

2. Load control: Avoid exceeding the rated load, especially on bumpy roads, slow down to prevent deformation of the rear axle housing;

3. Abnormal sound detection: When metal friction sounds are found during driving, immediately check the gear meshing clearance and adjust and maintain in time.

Product Categories : Rear Axle
